Empowering a New Era of Quality — Built on a Legacy of Innovation

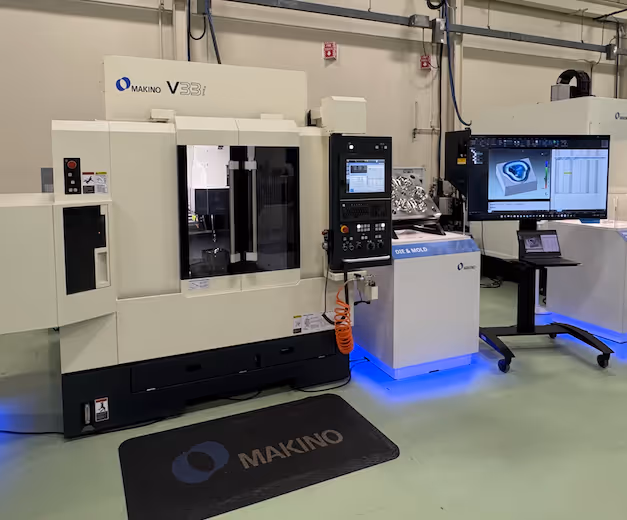

CAPPS-NC empowers leading tooling manufacturers to deliver design intent molds and dies utilizing adaptive manufacturing methods.
Mold and die making requires very careful cutting to avoid removing too much material. With CAPPS-NC closed loop feedback, a "Measure-Cut-Measure" approach can automatically be applied, saving costly errors.

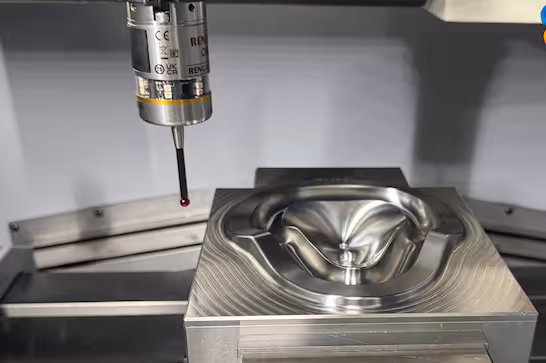

Close loop measure-cut-measure is performed by CAPPS-NC, first measuring the part, then modifying and reposting the NC G-code for the cutting program. This loop continues until the part is in tolerance, without operator intervention.
Tool wear is an inevitable part of machining. Through closed-loop feedback, tool wear can be dynamically compensated for.
Multi-cavity molds can loop a single cavity program as many times as required - all while maintaining closed loop feedback.
-adjustment of G code needed, where part shape doesn't match the cad, and never will, machine machining out of solid material.
Part setup, refinement of work offset, part location orientation
two rough passes and a finish pass, last cut is relative to the expected amount of cut. expecting 1 thou, use as offset
CAPPS-NC is integral in machining workflows such as
CAPPS-NC is integral in cutting workflows such as;
CAPPS-NC software allows for direct-feedback of work offset adjustments and tool offsets as well as full suite of Metrology GD&T package that saves you manufacturing time.
CAPPS-DMIS software allows for CMM, Portable Arm or other metrology devices for offline and online programming.
Centralized data collection software that allows for monitoring trends and overall quality data of currently in process parts and post process parts.
